Fluke 709 Precision Current Loop Calibrator

Name: Fluke 709 Precision Current Loop Calibrator
Brand: Fluke
SKU: 2607201
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

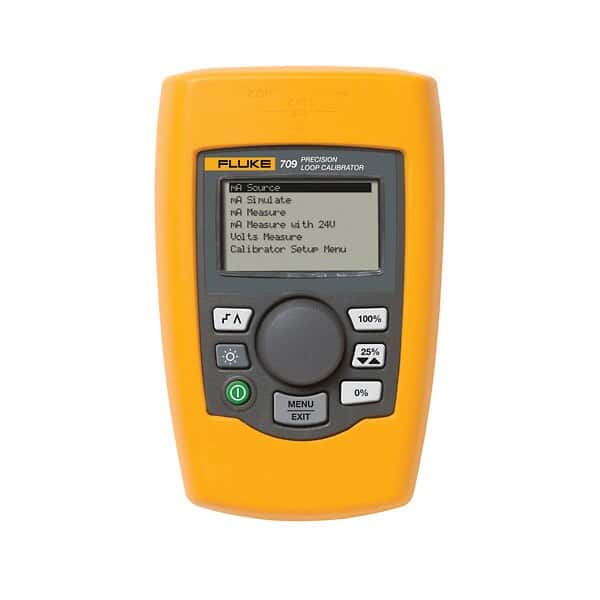

Fluke 709 Precision Current Loop Calibrator

Fluke | Mfr: FLUKE-709| Item: 2607201

Saves time and produce high-quality results

Best-in-class accuracy at ±0.01% reading ... READ MORE

Call For Price

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 2 Items in this Product Family

Include Calibration Services

InnoCal NIST-Traceable Calibration, Process Calibrator/Digital Multimeter

for an additional

$356.56CAD / Each

InnoCal A2LA ISO17025 Accredited Calibration, Process Calibrator/Digital Multimeter

for an additional

$481.80CAD / Each

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Includes

soft case, six AAA batteries, manual CD-ROM, and quick-reference guide.

Key Features

Best-in-class accuracy at ±0.01% reading
24 VDC loop power with mA measure mode (–25% to 125%)
Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
Simple two-wire connection for all measurements
Auto shutdown to conserve battery life (adjustable up to 30 minutes)
Variable step & ramp time in seconds
Adjustable span selection (0 to 20 mA or 4 to 20 mA)
Valve Test (simulate defined mA values with % keys)
Intuitive user interface with Quick-Set knob for fast setup, easy use
Small rugged design operates on (6) standard AAA batteries
3 year warranty

More About this Item

These calibrators are built around a user-friendly interface with a Quick-Set rotary encoder knob. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop. Compact, rugged design with protective holster easily fits into a technician’s hand. A large backlit display is easy to read even in dark, cramped worked areas.

Additional What's included:
Model 709 also includes two AC72 alligator clips and TL75 test leads.

Specifications

Max Measurement (mA)24
Min Measurement (mA)0
Voltage Accuracy (VDC)0.01% ±2 counts, all ranges (at 23°C ±°C)
Max Temperature (° F)131
Min Temperature (° F)14
Operating Humidty Range10 to 95% non-condensing
Pressure Resolution1 μA (Current): 1 mV Voltage
Stability20 ppm of FS/°C from -10 to 18°C and 28 to 55°C
Display Type128 x 64 pixels, LCD graphic with backlight, 0.34"H digits
Width (in)3 5/8
Height (in)1 3/8
Length (in)6
Width (cm)9
Height (cm)3
Length (cm)15
Batteries6 x AAA batteries
Battery life40-hour typical
DescriptionPrecision Current Loop Calibrator
Warranty3 Years
