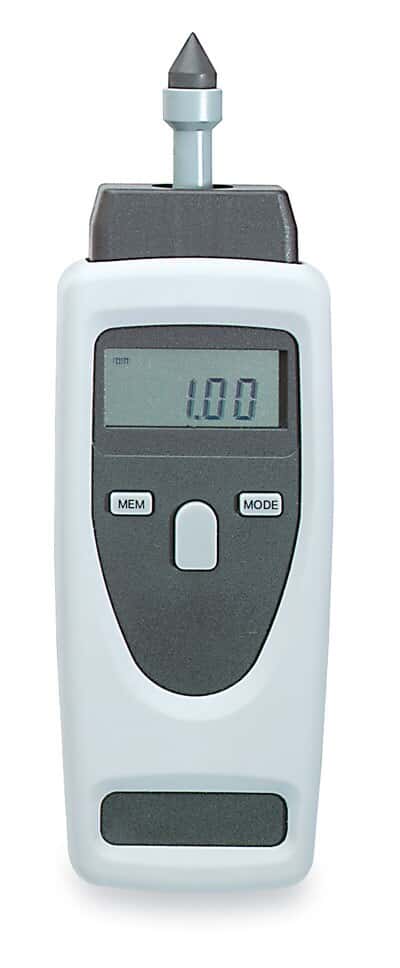

Electromatic Equipment CDT-2000HD-N High-Accuracy Rugged Contact/Noncontact Optical Tachometer

Representative image only.

Electromatic Equipment CDT-2000HD-N High-Accuracy Rugged Contact/Noncontact Optical Tachometer

Electromatic Equipment | Mfr: CDT-2000HD-N| Item: UZ-87601-03

Rubber boot protects meter during industrial applications

$505.74CAD / Each

for an additional
$405.18CAD / Each
for an additional
$282.45CAD / Each
Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

$505.74CAD / Each

Buy It Together

Current Item

Electromatic Equipment CDT-2000HD-N High-Accuracy Rugged Contact/Noncontact Optical Tachometer
Electromatic Equipment CDT-2000HD-N High-Accuracy Rugged Contact/Noncontact Optical Tachometer
8760103

$505.74CAD / Each
+ +
InnoCal NIST-Traceable Calibration; Tachometer
1705000

$282.45CAD / Each
=
Total Price 807.93 ADD 3 ITEMS TO CART
Product Description

Includes

reflective tape, two AA batteries, and carrying case. Model 87601-03 also includes a contact adapter, surface speed wheel and cone tip adapter and calibration document supplied by the manufacturer.

Key Features

  • Provides ±0.02% accuracy with 0.01-rpm resolution

More About this Item

These digital tachometers feature high accuracy for precision measurements. The removable rubber boot provides an ergonomic, comfortable grip while protecting the meter in heavy-duty environments. Tachometers are available in optical (noncontact) or optical/contact models. Memory stores min/max, average, and last readings during measurement. A red LED helps target equipment from up to 24" (61.0 cm) away. Model 87601-03 features optical/contact measurements in rpm, three surface speed ranges, and three length measurement ranges.

5 Year WarrantyNIST Traceable Calibration
Specifications
  • Max Measuring Distance (in)24
  • Max Measuring Distance (cm)61
  • Min RPM Range (rpm)1
  • Max RPM Range (rpm)99999
  • RPM Accuracy (rpm)± 0.02% of reading or 1 digit
  • Min Flash Range (fpm)0.3
  • Max Flash Range (fpm)6500
  • Display Type5-digit LCD, 0.375" H (1.0 cm)
  • MemoryAverage, last reading, min/max
  • Battery Life40 hours continuous
  • Height (in)7
  • Width (InchShort)2 1/4
  • Depth (in)1 1/8
  • Height (cm)17.8
  • Width (cm)5 45/64
  • Depth (cm)2.8
  • TypeContact/Noncontact
  • DescriptionHigh-Accuracy Rugged Contact/Noncontact Optical Tachometer
