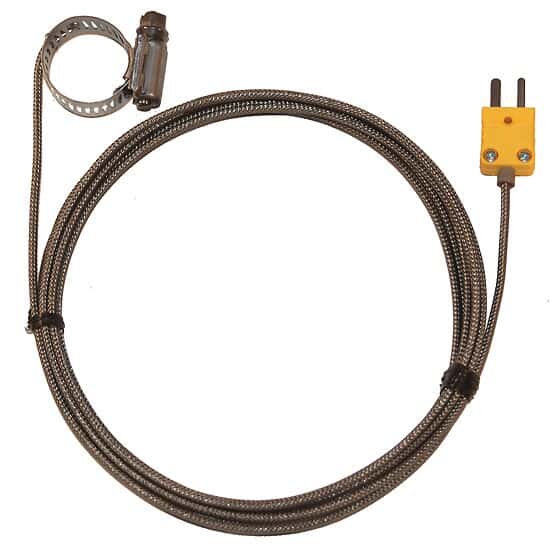

Digi-Sense Type-K Hose Clamp Probe 0.50 -1.50 OD Mini-Connector, Grounded 10ft SS Braid Cable

Name: Digi-Sense Type-K Hose Clamp Probe 0.50 -1.50 OD Mini-Connector, Grounded 10ft SS Braid Cable
Brand: Digi-Sense
SKU: 0846932
Price: 93.41 CAD
Availability: OutOfStock

Zoom Image

Representative image only.

Add to Compare

Digi-Sense Type-K Hose Clamp Probe 0.50 -1.50 OD Mini-Connector, Grounded 10ft SS Braid Cable

Digi-Sense | Item: 0846932

Designed for Easy Installation on Small Round Vessels

Ideal for permanent installation on hoses or pipes ... READ MORE

$93.41CAD / Each

BUY MORE & SAVE

1-5$93.41 CAD / Each
6-11$84.07 CAD / Each
12-23$79.40 CAD / Each
24+$74.73 CAD / Each

Add To Cart

+ADD TO LIST

PRODUCT OPTIONS

See All 9 Items in this Product Family

Include Calibration Services

InnoCal A2LA ISO17025 Accredited Calibration, Thermocouple Thermometer System Meter+Probe

for an additional

$485.48CAD / Each

InnoCal NIST-Traceable Calibration; Thermocouple Probe (Probe Only)

for an additional

$340.35CAD / Each

InnoCal A2LA ISO17025 Accredited Calibration; Thermocouple Probe (Probe Only)

for an additional

$464.12CAD / Each

InnoCal NIST-Traceable Calibration, Thermocouple Thermometer System Meter+Probe

for an additional

$363.56CAD / Each

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

Ideal for permanent installation on hoses or pipes
Several Different clamp sizes for diameters ranging from .44” DIA to 2.25” DIA
Response Time: 1.5 seconds or greater
Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple
Custom designs or changes to this product are available upon request
6 month warranty

More About this Item

Note: the temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

Specifications

Probe TypeK
Min Temperature (° F)-250
Max Temperature (° F)900
Min Temperature (° C)-150
Max Temperature (° C)482
Temperature Accuracy±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
JunctionGrounded
Connector TypeMini Connector
Sheath MaterialClamp: 304 Stainless Steel; 0.50-1.50" diameter
Cable TypeBraided SS
Cable Length (in)120
DescriptionType-K Hose Clamp Probe 0.50 -1.50 OD Mini Conn Grd 10ft SS Braid Cable
Warranty6 month
