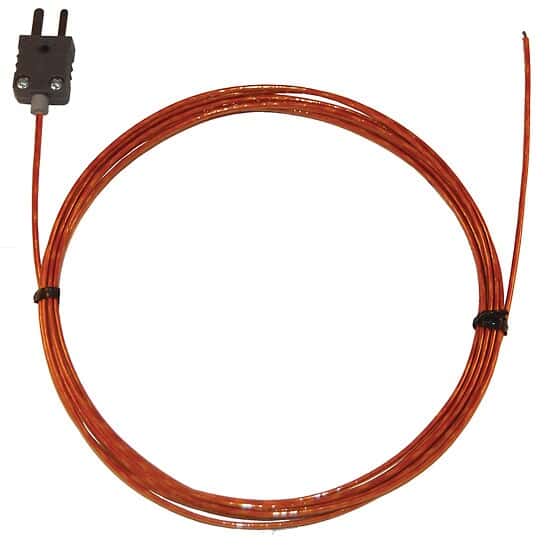

Digi-Sense Type J Kapton - Insulated Thermocouple Probe; 24 -Gauge; 10'L

Name: Digi-Sense Type J Kapton - Insulated Thermocouple Probe; 24 -Gauge; 10'L
Brand: Digi-Sense
SKU: 0851790
Price: 76.62 CAD
Availability: InStock

Zoom Image

Representative image only.

Add to Compare

Digi-Sense Type J Kapton - Insulated Thermocouple Probe; 24 -Gauge; 10'L

Digi-Sense | Item: 0851790

Flexible Kapton-Insulated Probe Ideal for Environments that Require Slightly Higher Temperatures than FEP/PFA can Provide

Response Time: 0.5 seconds or greater. ... READ MORE

$76.62CAD / Each

BUY MORE & SAVE

1-5$76.62 CAD / Each
6-11$68.96 CAD / Each
12-23$65.13 CAD / Each
24+$61.30 CAD / Each

Add To Cart

+ADD TO LIST

Include Calibration Services

InnoCal A2LA ISO17025 Accredited Calibration, Thermocouple Thermometer System Meter+Probe

for an additional

$485.48CAD / Each

InnoCal NIST-Traceable Calibration; Thermocouple Probe (Probe Only)

for an additional

$340.35CAD / Each

InnoCal A2LA ISO17025 Accredited Calibration; Thermocouple Probe (Probe Only)

for an additional

$464.12CAD / Each

InnoCal NIST-Traceable Calibration, Thermocouple Thermometer System Meter+Probe

for an additional

$363.56CAD / Each

Time to Re-Calibrate Your Instrument?
Learn more about our calibration services

Product Description

Key Features

Response Time: 0.5 seconds or greater.
All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded mini connectors: type J – black.
Custom designs or changes to this product are available upon request
6 month warranty

More About this Item

Exposed-junction probes are not recommended for use with aqueous solutions.

Do not subject type J exposed-junction probes to moisture as they will rust

Specifications

Length (")120
Probe TypeJ
Min Temperature (° F)32
Max Temperature (° F)600
Min Temperature (° C)0
Max Temperature (° C)315
Temperature Accuracy±5.9°F (±3.3°C), or ±0.4% of reading above 32°F (0°C); ±4.0% of reading below 32°F (0°C)
JunctionExposed
Connector TypeMini Connector
Sheath MaterialKapton Insulated Wire
Sheath Length (in)120
Cable Wire Gauge (Ga)24
DescriptionType J Kapton - Insulated Thermocouple Probe; 24-Gauge; 10'L
Warranty6 month
