With a unique built-in barometer, the ADT686 can be a solution for three common applications: gauge pressure measurement, absolute pressure measurement, and barometric or atmosphere pressure measurement
One rechargeable Lithium-ion battery and power adapter.
Key Features
Color touchscreen display
Every model measures gauge or absolute pressure
Built-in barometer
Intuitive smartphone-like interface
Bluetooth and USB communication
Communicates with Additel's Link mobile app
IP67 rated
1 year warranty
More About this Item
With wireless remote connectivity, microprocessor technology, and state of-the-art silicon pressure sensors, these fully temperature compensated gauges will provide performance, durability, and reliability. The all-new modern menu structure and control interface bring a new and refreshing experience to pressure calibration work. The handy Additel Link app gives users the ability to remotely monitor these gauges from the convenience of a personal device or cell phone. With an IP67 rating, you will find that these pressure gauges can be used in the field or laboratory to meet the most demanding pressure calibration needs. The 3.4-inch color touchscreen display comes with a protective replaceable tempered glass screen and is a refreshing update to the traditional push button or blister pad interface. With an easy to navigate menu structure and fast touchscreen response, you will find the ADT686 gauges simple yet powerful to use. The easy-to-read display isn’t just fun to use, but it’s built rugged to handle the demands of a busy technician in the field or the laboratory. A built-in barometer sensor allows for the pressure reading to display in gauge pressure or absolute pressure with a simple menu selection. The built-in barometer is calibrated and certified to an accuracy of 55 Pa.
Specifications
Accuracy0.02% of full span
Min Pressure (PSI)0
Max Pressure (PSI)1000
Wetted Materials316 SS
Case304 SS
Process Connection1/4" NPT-M
Unit Of MeasurementPa, kPa, MPa, psi, bar, mbar, kgf/cm2, inH2O@4°C,mmH2O@4°C, inHg@0°C, mmHg@0°C and5 customizable units
DisplayColor Touchscreen (capacitive)
Battery Type1 Rechargeable Lithium-ion (included)
Battery Life16 hours
Enclosure RatingIP67
Resolution4, 5 or 6 digits (user selectable)
Height (in)7 1/100
Width (in)1 49/64
Length (in)4 21/32
Height (cm)17.8
Length (cm)11.8
Width (cm)4.2

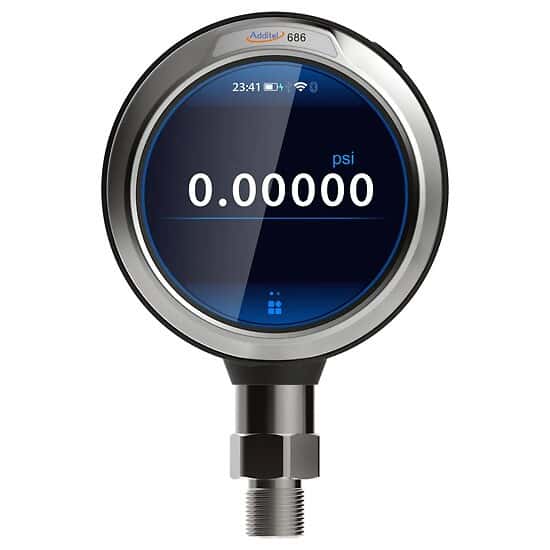

DescriptionAdvanced Digital Pressure Gauge, 0.02% FS, 0 to 1000 psi, 1/4" NPT Male
